PIX Robo-EV Developer


 Fully Electric Drive-by-Wire Skateboard Chassis

Craft Your Autonomous Ride

Priced at $16,500
Pre-order with a $165 deposit, refundable within 7 days

Product Details

Robo - EV

 Fully Electric Drive-by-Wire Skateboard Chassis

Brake-by-Wire

Better Braking Energy

Recovery

Steer-by-Wire & L4 Autonomous Driving

Realize real-time response and

gain greater control

EPB Integrated

Provide precise braking and automatic parking

*¹When the vehicle is slowing down or braking, the system efficiently converts part of the kinetic energy that would otherwise be wasted as heat back into electricity, which is stored in the battery

NEV底盘ai g.png

SecondDevelopmentInterface

Unlock the protocol for communicating with vehicles. By accessing the communication protocol, users can change the parameters and functions of the chassis. This allows for personalized chassis tuning and changing how the vehicle acts. We also offer development documentation to help developers use all open interfaces.


Open-Sourced3D Digital Models

We provide developers with detailed digital models, including accurate representations of individual components and structures, allowing flexible and personalized design to meet various functional and aesthetic needs.


Drive-by-WireTechnology

The driving system, steering system, transmission system, and braking system are highly integrated. Using electrical signal conduction instead of mechanical signal transmission achieves high precision and rapid response speed.

KC-三合一风冷配电箱总成02.tif

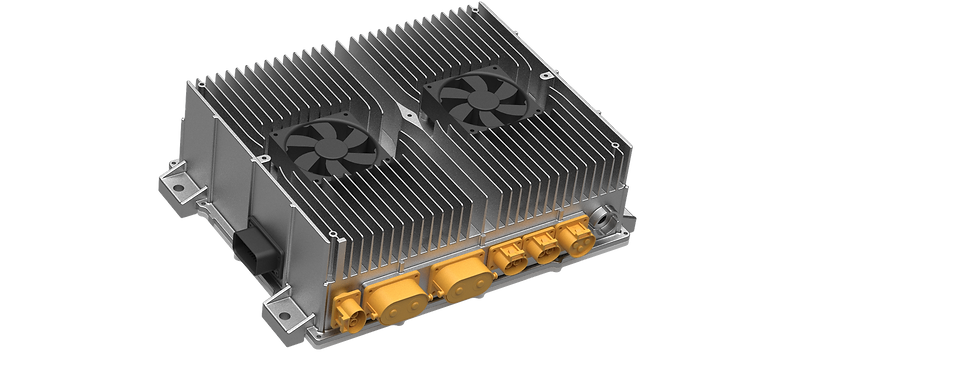

3-in-1MultifunctionalCharger

Seamlessly integrating charging control, power conversion, and protection monitoring. The battery provides superior efficiency and rapid charging and is compatible with various charging facility standards.

Metal 3D Printing Technology

Integrated Chassis
Reduce potential failures, minimizes supply chain dependencies, and enhances the overall reliability and handling of the vehicle.

Composite Material

Lighter, Safer, and Eco-Friendly

Using basalt fiber to create leaf springs, ensuring strength and stiffness in the vehicle's suspension, achieving a lighter, safer, and more environmentally-friendly driving experience.

AI-algorithm Generative Design

Bionic Integrated Hollow Structure

First in the industry to use generative algorithms for designing a bio-inspired hollow structure, thereby reducing the part count to minimize potential failure points and achieve lightweighting of the chassis.


Specification

Maximum Load

350kg

Top Speed

95km/h

(Software Limit of 80km/h)

Maximum Gradeability

20%

Minimum Turning Radius

3.2m

Battery Type

LiFePO4

Battery Rated Voltage

144V

Battery Capacity

Driving Range

14.6KWh

150km

Drive Motor Rated Power

15KW

Maximum Wheel Torque Output

600N.m

Length-Width-Height

2610mm*1455mm*978mm

Wheelbase

2015mm

Wheel Tread

1284mm

Frame Material

Aluminium Alloy

Suspension Type

Double-wishbone Suspension,

Composite Material Leaf Spring

Tire Specifications

165/65 R15

Ground Clearance

165mm

Power Type

Pure Electric

Curb Weight

300kg

Energy Recycling

When others need billions to build a car, we only require ten geeks and AI.

Founder & CEO, Angelo


PIX Developer Group
Inspire & Connect

Join Makers on a journey of innovation. Question the norm, infuse vitality, and transform the status quo. Robo-EV Developer provide a canva for your imagination and a way to explore for self-discovery.
